New JLR Pathfinder Offline 2023 Enhancement Full access

New JLR Pathfinder
Offline Enhancement Full access for 2022 2023 Models

n

n

n

n

n

n

n

n

n

n

n

n

nThe new JLR-approved Diagnostics over Internet Protocol (DoIP) Vehicle
Communication Interface (VCI) unit is the only unit that will be compatible
with Pathfinder and all JLR vehicles with the new vehicle architectures (from
the Range Rover/Range Rover Sport (L405/L494) 17MY onwards) or allow the
enhanced diagnostics that Pathfinder will offer
the retailer. The DOIP interface and Pathfinder
software will allow you to activate
Jaguar and Land Rover Apple CarPlay if your car
firmware and hardware are supported. Package
Includes
n

n
• Offline Pathfinder System V374
  Offline Unlocked and SDD System (no TOPIX Land Rover required) or
  System ready to work image file plus activation as an optional. (Mega download
  link)

n

• PathFinder 2023 models Patched.

n

• CCF
  Tools 4.6 official 2015 – 2019 & CCF
  Tools 4.8 2021 – 2022 registered or CCF
  Tools 4.9 for 2023 models.

n

• Remote Installation via Team Viewer
  Remote.

n

nSpecial Note: Remote system installation and
system activations with our knowledge and know-how.
n
nThis item is NOT Returnable, NO Refund under
any circumstance. System Future Updates are not included in the package. The
system that we installed and tested has been verified ONLY with the original
JLR
DOIP VCI WF. We are not responsible for the VCI
interface communication issue between the system software and the 3rd party
VCI or any cloned VCI.
n

With this system package, we will support all customers with
TOPIX Land Rover Remote Support

n[wpforms id=”10013″] n
nMore details on Jaguar
Land Rover DoIP VCI Supported Functions:
n

n
• Work with the models after 2017, support Pathfinder software
  application

n

• Work with the models before 2016, and support SDD
  software.

n

• Support all of the SDD’s diagnostic & programming
  protocols.

n

• Support all of the Pathfinder’s diagnostic & programming
  protocol

n

• Support Pathfinder activation service offline.

n

• Support WIFI connection

n

• Support VBF file edit

n

• Support E-XML file edit

n

• Support SDD engineering software application

n

• Support Pathfinder engineering software
  application

n

• Support online programming, coding & key
  programming

n

• SDD software can update to the newest version with the
  assistance of the manufacturers’ engineers, and perform online
  programming.

n

• Pathfinder can update to the newest version with the
  assistance of the manufacturers’ engineers, and perform online
  programming.

n

• Can replace JLR VCI box

n

• Can replace JLR DoIP VCI box

n

• The NEW JLR DoIP VCI is the newest interface for Jaguar and
  Land Rover vehicles.

n

nThe Pathfinder software is the only unit
that will be compatible with the Pathfinder Software and all JLR vehicles
with the new vehicle architectures found in 2017 and newer vehicles (from the
Range Rover/Range Rover Sport L405/L494). In addition to the 2017 and newer
vehicles, the DoIP VCI will also be capable of interfacing with 2014 through
2019 Multi-CAN architecture vehicles (see application list below).
n
nThe SDD software All 2014-2018 with no DOIP
and earlier (2006 to 2014) land rover and Jaguar will still use the SDD JLR
software. 14-16MY Vehicles with DOIP VCI
support
n

n
• XE (X760)

n

• F-Pace (X761)

n

• F-Type (X152)

n

• XF (X260)

n

• XJ (X351) – 16MY only

n

• Evoque (L538)

n

• Discovery Sport (L550)

n

• Range Rover (L405)

n

• Range Rover Sport (L494)

n

nPre-14MY and vehicles not detailed above will continue to use the current
diagnostic system and VCIs. For Land Rovers from 1998-2009, fully compatible
with the T4
Product Platform.  The T4 Mobile Plus System software can work
with both Windows XP and Windows 10.
n
n Frequently Asked Questions on JLR DOIP
How does the JLR VCI get updated for future Software
Updates?
n
nPeriodically JLR will release updates to its products’ drivers and
software. These updates are necessary to either release further device
functionality or resolve field issues. The updating of the drivers and
software is handled by the diagnostic test application which will install the
updates on request. If problems are experienced during device use, always make
sure that the latest device software and drivers have been installed.
n
nHow to Install the Diagnostics over Internet Protocol
(DoIP) Vehicle Communication Interface (VCI) unit?
n
nBefore Installation:
n

n
• PATHFINDER requires a DoIP VCI unit to communicate with the
  2017 model year Range Rover L405, Range Rover Sport L494, and New Discovery
  L462.

n

• The DoIP VCI must be the only VCI connected to the JLR
  Approved Diagnostic Equipment when using PATHFINDER. Future PATHFINDER
  communications will appear soon in the ‘Activity Stream’ section on Topix.
  Every retailer MUST have the DoIP VCI available in their workshop. The DoIP
  VCI is the only JLR-approved VCI unit that can communicate with the 2017
  model year vehicles identified earlier.

n

• Please be aware that the following instructions are only
  applicable for the first use of the VCI. Once the initial installation and
  settings have been completed, the DoIP VCI is plug-and-play with the
  PATHFINDER software.

n

n

n
1. Insert the DoIP VCI USB cable into the DoIP VCI device and
   the JLR Approved Diagnostic Equipment. Note: The ‘USB Input Device’ pop-up
   will appear, select ‘X’ and close the pop-up.

n

2. Select the ‘Windows’ key.

n

3. Select ‘All Programs.

n

4. Select ‘Bosch’.

n

5. Select ‘VCI Software (JLR)’.

n

6. Select ‘VCI Manager (JLR)’.

n

7. Select the VCI icon displayed on the screen.

n

8. Select ‘Connect to VCI’

n

9. Select ‘VCI Update’.

n

10. Select ‘Start Update’.

n

11. The ‘VCI Manager Information’ pop-up will appear, select ‘OK’
    to continue. Note: Do not disconnect the DoIP VCI from the JLR Approved
    Diagnostic Equipment during the update process. Note: The DoIP VCI update
    process will take approximately 12 minutes to complete.

n

12. The DoIP VCI will now automatically restart. Wait for the
    DoIP VCI to give an audible beep. Select ‘OK’ to continue.

n

13. Select ‘X’ and close the ‘VCI Manager’. The DoIP VCI is ready
    for use Setting Preferences in PATHFINDER

n

nHow to Set the Preferences in PATHFINDER?
n

n

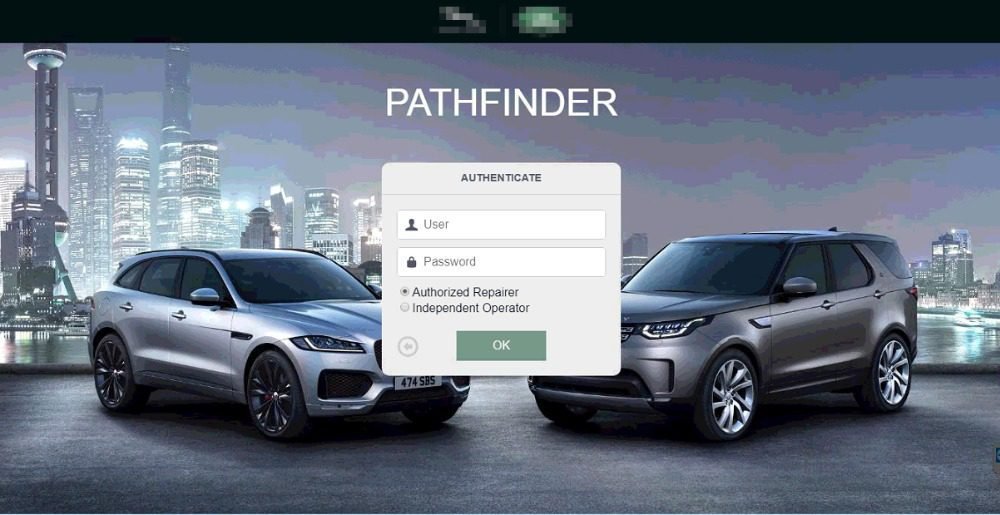

1. Select the PATHFINDER icon on the ‘JLR Application
   Launcher.

n

2. Select ‘Other User’ and enter your ‘User Identification’ and
   Password details.

n

3. Select ‘Independent Operator’ or ‘Authorised
   Repairer’.

n

4. Select ‘OK’ and log in.

n

5. Read the content of the ‘Warning’ pop-up and select
   ‘OK’.

n

6. Select the three-bar icon in the top right of the screen.
   Select the ‘Settings’ icon.

n

7. Select the ‘Communication Interface’ tab. Select
   ‘D-PDU’.

n

8. The ‘Windows Security Alert – Windows Firewall’ pop-up is
   displayed. Note: Do not select ‘Cancel’ when the ‘Windows Security Alert’
   pop-up is displayed.

n

9. In the ‘Windows Security Alert – Windows Firewall’ pop-up,
   select the checkboxes for ‘Private Networks’ and ‘Public Networks’, then
   select ‘Allow Access’.

n

10. The preferences have now been set in PATHFINDER. Note: Once
    the initial installation and settings have been completed, the DoIP VCI is
    plug-and-play with the PATHFINDER software.
