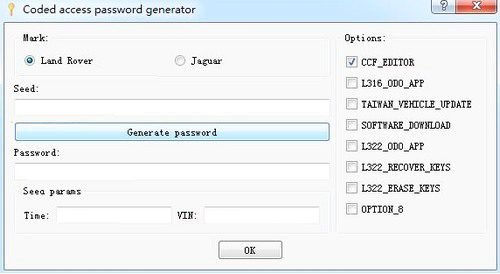

JLR Code Access Password Generator (Unlimited Token)

JLR Code Access
Keygen Password Generator

n

n

n

JLR Code Access Keygen Features

n

n
• CCF Editor – Retrofit configuration coding

n

• Odometer

n

• Vehicle Programming

n

• Programming upgrade/downgrade

n

• Recover Keys – restore/delete

n

• Defender 8 Option

n

• VIN Bypass

n

• VID Block Editor

n

• Software Download

n

n

Meantime you can also order the older

n

CCF
Tools 4.6

n

n
• Support MY 2015 – 2019.5 Car models. L538, L550, X260, X760,
  X540, L405, L494, L462

n

n

CCF
Tools 4.8

n

n
• Support MY 2021 – 2022 L462 L663 X260 L560 L551

n

n

New
CCF Tools 4.9

n

n
• New JLR CCF Tools 4.9 CCF Editor, JLR VBF Editor for JLR MY
  2017 – 2023

n

n

Pathfinder
Offline Unlock without TOPIX Land Rover Account Input

nPackage Includes 1 Pathfinder system unlock
V371 or V372 or V374 to work with offline Pathfinder on 2022 models without
TOPIX account login. In case you don’t have the Pathfinder installed, we can
provide the Pathfinder V372 and SDD V162 System image files after the order
payment. The package from this link does NOT come with installation service
remote
support. We will remotely unlock the system V371 or V372 or V374 to
work with offline Pathfinder on 2022 models without a TOPIX account login.
n
nSpecial Note: This item is NOT returnable
under any circumstance. No refunds are available under any circumstance.
n
nThe Pathfinder software 2022 It is the only
unit that will be compatible with the Pathfinder Software and all JLR vehicles
with the new vehicle architectures found in 2017 and newer vehicles (from the
Range Rover/Range Rover Sport L405/L494). In addition to the 2017 and newer
vehicles, the DoIP VCI will also be capable of interfacing with 2014 through
2019 Multi-CAN architecture vehicles (see application list below). PATHFINDER
supports the following vehicles. Land Rover: Range Rover L405 (17MY) Range
Rover Sport L494 (17MY) New Discovery L462 (17MY) Jaguar: F-TYPE X152 (18MY)
F-PACE X761 (18MY) XE X760 (18MY) XF X260 (18MY)
n
nThe SDD software All 2014-2018 with no DOIP
and earlier (2006 to 2014) land rover and Jaguar will still use the SDD JLR
software. 14-16MY Vehicles with DOIP VCI support
n

n
• XE (X760)

n

• F-Pace (X761)

n

• F-Type (X152)

n

• XF (X260)

n

• XJ (X351) – 16MY only

n

• Evoque (L538)

n

• Discovery Sport (L550)

n

• Range Rover (L405)

n

• Range Rover Sport (L494)

n

nPre-14MY and vehicles not detailed above will continue to use the current
diagnostic system and VCIs. For Land Rovers from 1998-2009, fully compatible
with the T4
Product Platform.  The T4 Mobile Plus System software can work
with both Windows XP and Windows 10.
n
n Frequently Asked Questions on JLR
DOIP How does the JLR VCI get updated
for future Software Updates?
n
nPeriodically JLR will release updates to its products’ drivers and
software. These updates are necessary to either release further device
functionality or resolve field issues. The updating of the drivers and
software is handled by the diagnostic test application which will install the
updates on request. If problems are experienced during device use, always
make sure that the latest device software and drivers have been installed.
n
nHow to Install the Diagnostics over Internet Protocol
(DoIP) Vehicle Communication Interface (VCI) unit? Before
Installation:
n

n
• PATHFINDER requires a DoIP VCI unit to communicate with the
  2017 model year Range Rover L405, Range Rover Sport L494, and New Discovery
  L462.

n

• The DoIP VCI must be the only VCI connected to the JLR
  Approved Diagnostic Equipment when using PATHFINDER. Future PATHFINDER
  communications will appear soon in the ‘Activity Stream’ section on TOPIX.
  Every retailer MUST have the DoIP VCI available in their workshop. The DoIP
  VCI is the only JLR-approved VCI unit that can communicate with the 2017
  model year vehicles identified earlier.

n

• Please be aware that the following instructions are only applicable
  for the first use of the VCI. Once the initial installation and settings have
  been completed, the DoIP VCI is plug-and-play with the PATHFINDER
  software.

n

n

n
1. Insert the DoIP VCI USB cable into the DoIP VCI device and
   the JLR Approved Diagnostic Equipment. Note: The ‘USB Input Device’ pop-up
   will appear, select ‘X’ and close the pop-up.

n

2. Select the ‘Windows’ key.

n

3. Select ‘All Programs.

n

4. Select ‘Bosch’.

n

5. Select ‘VCI Software (JLR)’.

n

6. Select ‘VCI Manager (JLR)’.

n

7. Select the VCI icon displayed on the screen.

n

8. Select ‘Connect to VCI’

n

9. Select ‘VCI Update’.

n

10. Select ‘Start Update’.

n

11. The ‘VCI Manager Information’ pop-up will appear, select ‘OK’
    to continue. Note: Do not disconnect the DoIP VCI from the JLR Approved
    Diagnostic Equipment during the update process. Note: The DoIP VCI update
    process will take approximately 12 minutes to complete.

n

12. The DoIP VCI will now automatically restart. Wait for the
    DoIP VCI to give an audible beep. Select ‘OK’ to continue.

n

13. Select ‘X’ and close the ‘VCI Manager’. The DoIP VCI is ready
    for use Setting Preferences in PATHFINDER

n

nHow to Set the Preferences in PATHFINDER?
n

n
1. Select the PATHFINDER icon on the ‘JLR Application
   Launcher.

n

2. Select ‘Other User’ and enter your ‘User Identification’ and
   Password details.

n

3. Select ‘Independent Operator’ or ‘Authorised
   Repairer’.

n

4. Select ‘OK’ and log in.

n

5. Read the content of the ‘Warning’ pop-up and select
   ‘OK’.

n

6. Select the three-bar icon in the top right of the screen.
   Select the ‘Settings’ icon.

n

7. Select the ‘Communication Interface’ tab. Select
   ‘D-PDU’.

n

8. The ‘Windows Security Alert – Windows Firewall’ pop-up is
   displayed. Note: Do not select ‘Cancel’ when the ‘Windows Security Alert’
   pop-up is displayed.

n

9. In the ‘Windows Security Alert – Windows Firewall’ pop-up,
   select the checkboxes for ‘Private Networks’ and ‘Public Networks’, then
   select ‘Allow Access’.

n

10. The preferences have now been set in PATHFINDER. Note: Once
    the initial installation and settings have been completed, the DoIP VCI is
    plug-and-play with the PATHFINDER software.
