JLR DOIP VCI SDD Pathfinder Interface JLR-DOIP-VCI-WF

The new JLR approved
Diagnostics over Internet Protocol (DoIP) Vehicle Communication Interface
(VCI) unit is the only unit that will be compatible with Pathfinder and
all JLR vehicles with the new vehicle architectures (from the Range
Rover/Range Rover Sport (L405/L494) 17MY onwards) or allow the enhanced
diagnostics that Pathfinder
will offer the retailer. The DOIP interface and Pathfinder
software will allow you to activate Jaguar
and Land Rover Apple CarPlay if your car firmware
and hardware are supported.
JLR VCI Product Overview


• Jaguar Land Rover Approved
  device



• Replacement for JLR
  SDD VCI’s



• Covers CAN, MultiCAN, ISO9141, and SCP Vehicle
  Networks



• Suitable for Legacy, Current, and Future
  Vehicles



• 2m USB
  Cable as standard included



• Easy to update for J2534 new functionality updates the JLR
  VCI connects directly to the vehicle OBDII (Diagnostic) connector, it then
  connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL
  files are loaded, this product will allow normal operation with JLR SDD
  Diagnostic Tool. All communication is possible with this device.

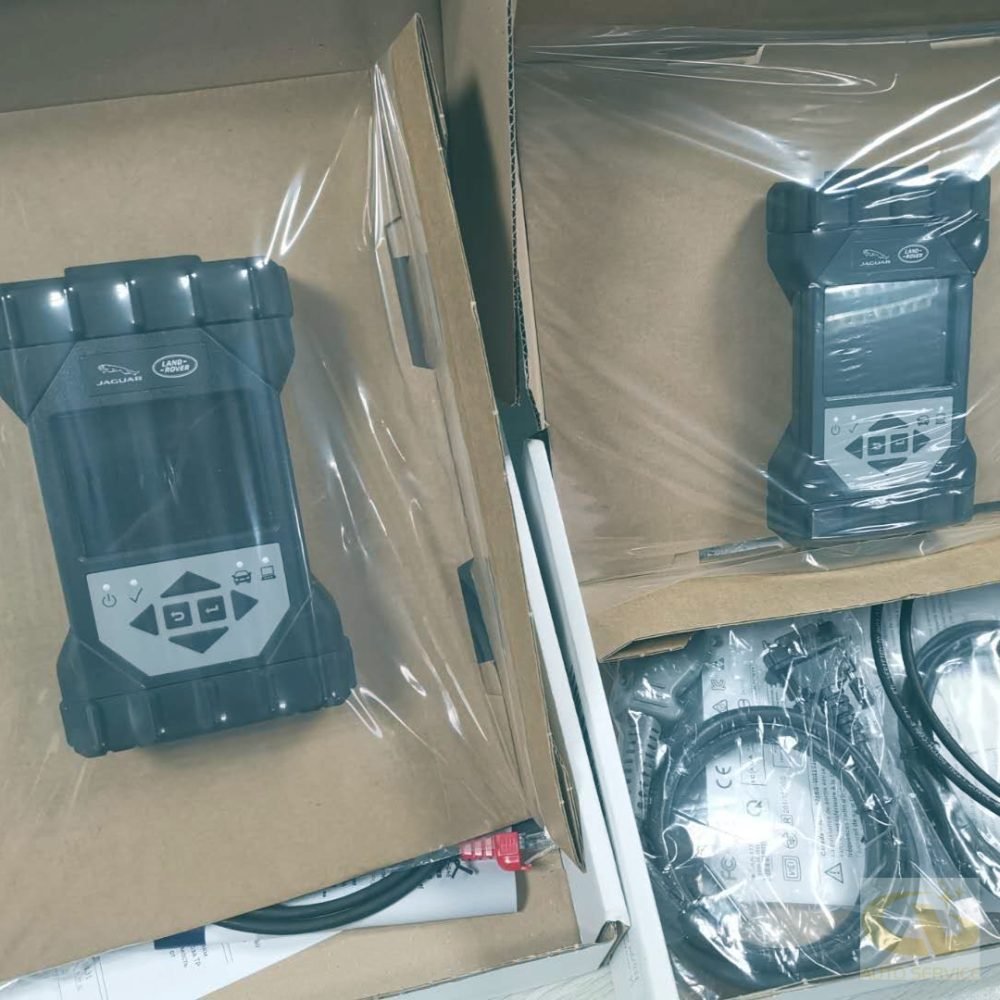

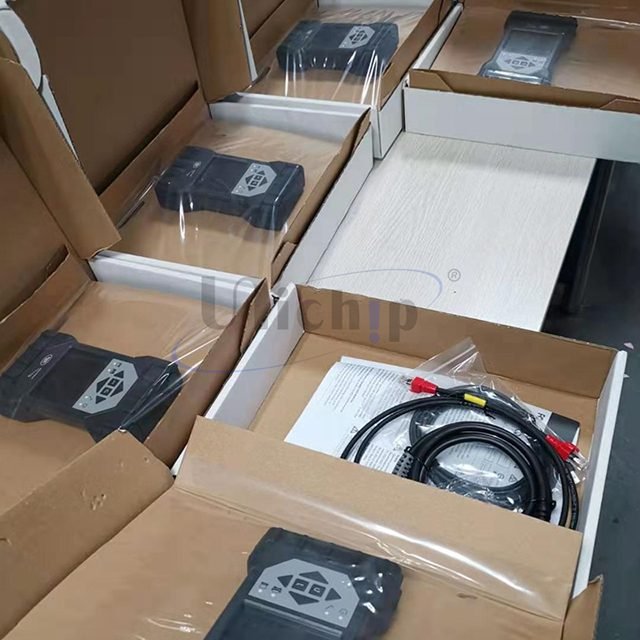

Package Includes  JLR DoIP VCI P/N: 1699200366879 USB Cable
(F-00K-108-653) Diagnostic Connector Cable (1-699-200-366) WLAN USB Stick x
2pcs (1-699-200-155) * some of our tools may be no original package paper box
included*  Jaguar Land
Rover DoIP VCI Supported Functions:


• Work with the models after 2017,
  support Pathfinder software application



• Work with the models before
  2016, and support SDD software.



• Support all of the SDD’s diagnostic & programming
  protocols.



• Support all of the Pathfinder’s diagnostic &
  programming protocol



• Support Pathfinder activation service
  offline.



• Support
  WIFI connection



• Support VBF file edit



• Support E-XML file
  edit



• Support SDD
  engineering software application



• Support Pathfinder engineering software
  application



• Support online programming, coding & key
  programming



• SDD
  software can update to the newest version with the assistance of the
  manufactures’ engineers, and perform online programming.



• Pathfinder can update to the
  newest version with the assistance of the manufacturers’ engineers, and
  perform online programming.



• Can replace JLR VCI box



• Can replace JLR DoIP VCI
  box



• The NEW JLR
  DoIP VCI is the newest interface for Jaguar and Land Rover
  vehicles.

The Pathfinder software
It is the only unit that will be compatible with the
Pathfinder Software and all JLR vehicles with the new vehicle architectures
found in 2017 and newer vehicles (from the Range Rover/Range Rover Sport
L405/L494). In addition to the 2017 and newer vehicles, the DoIP VCI will
also be capable of interfacing with 2014 through 2019 Multi-CAN architecture
vehicles (see application list below).
The SDD software All 2014-2018 with no
DOIP and earlier (2006 to 2014) land rover and Jaguar will still use the SDD
JLR software.  14-16MY
Vehicles with DOIP VCI support


• XE (X760)



• F-Pace (X761)



• F-Type (X152)



• XF (X260)



• XJ (X351) – 16MY
  only



• Evoque
  (L538)



• Discovery
  Sport (L550)



• Range Rover (L405)



• Range Rover Sport
  (L494)

Pre-14MY and vehicles not detailed above will
continue to use the current diagnostic system and VCIs. For Land Rovers from 1998-2009, fully
compatible with the T4
Product Platform.  The T4 Mobile Plus System software can work
with both Windows XP and Windows
10.
Frequently Asked Questions on JLR DOIP  How does the JLR VCI get
updated for future Software Updates? Periodically JLR will
release updates to its products’ drivers and software. These updates are
necessary to either release further device functionality or to resolve field
issues. The updating of the drivers and software is handled by the diagnostic
test application which will install the updates on request. If problems are
experienced during device use, always make sure that the latest device
software and drivers have been installed.
How to Install the Diagnostics over Internet Protocol
(DoIP) Vehicle Communication Interface (VCI) unit? Before
Installation:


• PATHFINDER
  requires a DoIP VCI unit to communicate with the 2017 model year Range Rover
  L405, Range Rover Sport L494, and New Discovery L462.



• The DoIP VCI must be the only
  VCI connected to the JLR Approved Diagnostic Equipment when using PATHFINDER.
  Future PATHFINDER communications will appear soon in the ‘Activity Stream’
  section on Topix. Every retailer MUST have the DoIP VCI available in their
  workshop. The DoIP VCI is the only JLR approved VCI unit that can communicate
  with the 2017 model year vehicles identified earlier.



• Please be aware that the
  following instructions are only applicable for the first use of the VCI. Once
  the initial installation and settings have been completed, the DoIP VCI is
  plug and play with the PATHFINDER software.


1. Insert the DoIP
   VCI USB cable into the DoIP VCI device and the JLR Approved Diagnostic
   Equipment. Note: The ‘USB Input Device’ pop-up will appear, select ‘X’ and
   close the pop-up.



2. Select the ‘Windows’ key.



3. Select ‘All
   Programs.



4. Select
   ‘Bosch’.



5. Select
   ‘VCI Software (JLR)’.



6. Select ‘VCI Manager (JLR)’.



7. Select the VCI icon displayed on
   the screen.



8. Select ‘Connect to VCI’



9. Select ‘VCI
   Update’.



10. Select
    ‘Start Update’.



11. The ‘VCI Manager Information’ pop-up will appear, select
    ‘OK’ to continue. Note: Do not disconnect the DoIP VCI from the JLR Approved
    Diagnostic Equipment during the update process. Note: The DoIP VCI update
    process will take approximately 12 minutes to complete.



12. The DoIP VCI will now
    automatically restart. Wait for the DoIP VCI to give an audible beep. Select
    ‘OK’ to continue.



13. Select ‘X’ and close the ‘VCI Manager’. The DoIP VCI is
    ready for use Setting Preferences in PATHFINDER

How to Set the Preferences in PATHFINDER?


1. Select the
   PATHFINDER icon on the ‘JLR Application Launcher.



2. Select ‘Other User’ and enter
   your ‘User Identification’ and Password details.



3. Select ‘Independent Operator’ or
   ‘Authorised Repairer’.



4. Select ‘OK’ and log in.



5. Read the content of the
   ‘Warning’ pop-up and select ‘OK’.



6. Select the three-bar icon in the top right of the screen.
   Select the ‘Settings’ icon’.



7. Select the ‘Communication Interface’ tab. Select
   ‘D-PDU’.



8. The
   ‘Windows Security Alert – Windows Firewall’ pop-up is displayed. Note: Do not
   select ‘Cancel’ when the ‘Windows Security Alert’ pop-up is
   displayed.



9. In
   the ‘Windows Security Alert – Windows Firewall’ pop-up, select the checkboxes
   for ‘Private Networks’ and ‘Public Networks’, then select ‘Allow
   Access’.



10. The
    preferences have now been set in PATHFINDER. Note: Once the initial
    installation and settings have been completed, the DoIP VCI is plug and play
    with the PATHFINDER software.
