CCF Tools 4.6 – the
easy JLR CCF Editor for Pathfinder – One System Registration

nThe CCF tools is standalone applications that can be used in conjunction
with SDD or Pathfinder software. There is an option to copy downloaded and
edited files to relevant folders for SDD and Pathfinder, for Pathfinder you
should use upload and let Pathfinder download them on its own. This

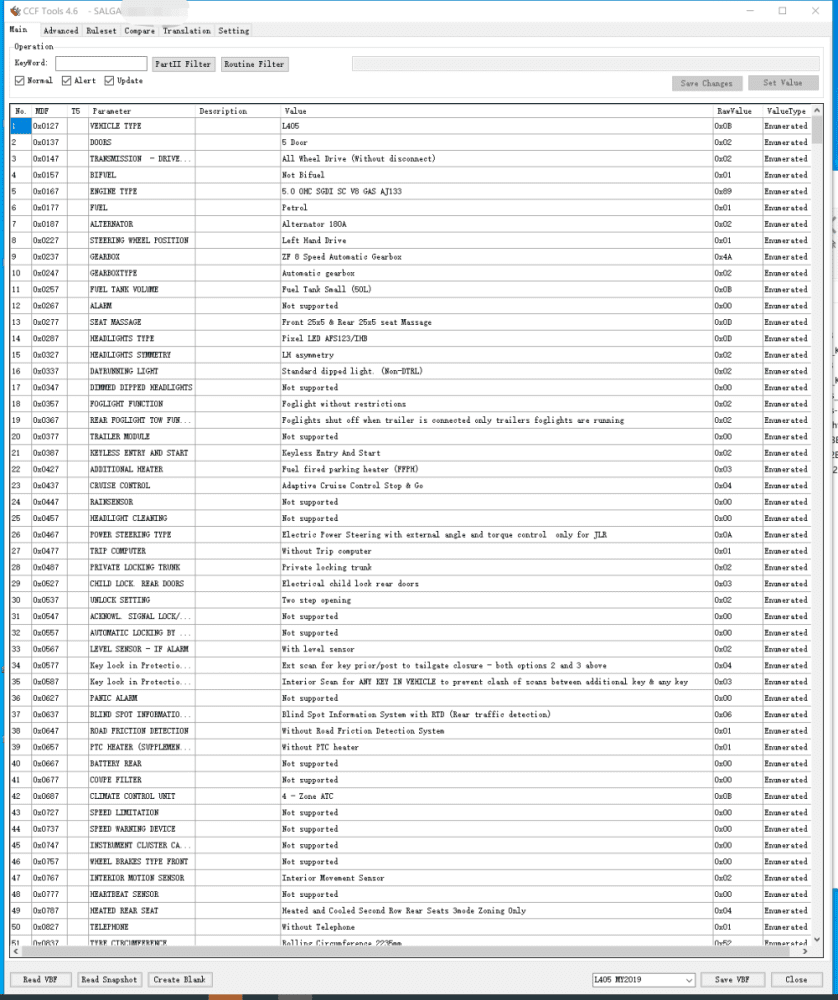

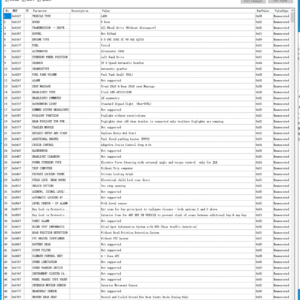

application allows downloading the vehicle’s CCF by VIN as built as well as
configuration files for all SDD and Pathfinder approved vehicle models. Then
edit the entire vehicle configuration file for all Jaguar Land Rover vehicles
manufactured between 2006 and 2008 depending on the model to this day, all
vehicles using SDD software or Pathfinder. The application supports
SOAP-encoded VBF* files that sometimes emerge from the JLR. CCFs of similar

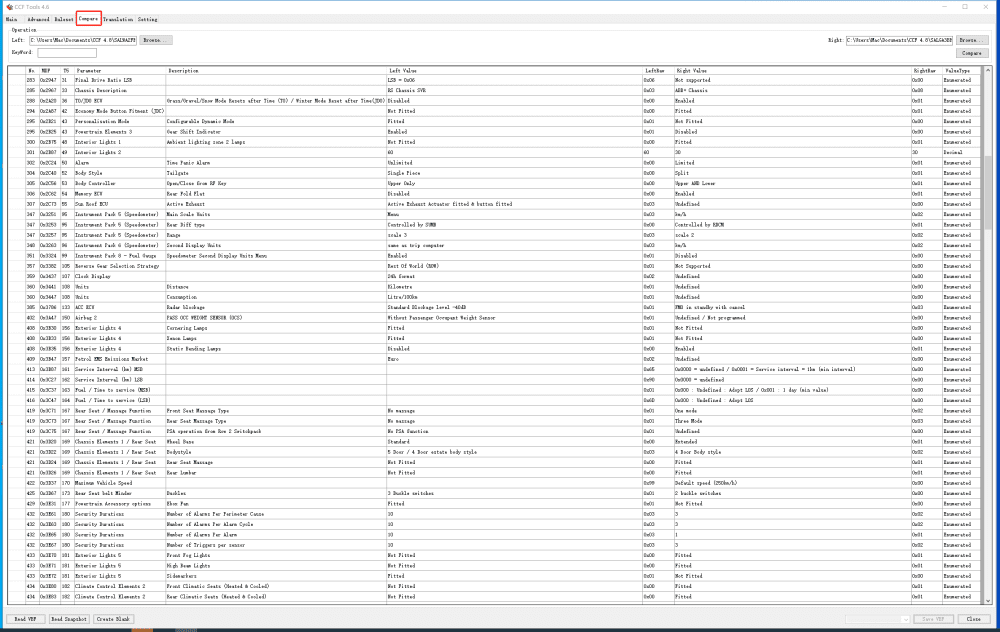

generations can be compared using the improved compare function, which now
allows the opening of ZIP files containing CCF.
n

CCF Tools 4.6 Features

n

n
• read VBF, search by keyword

n

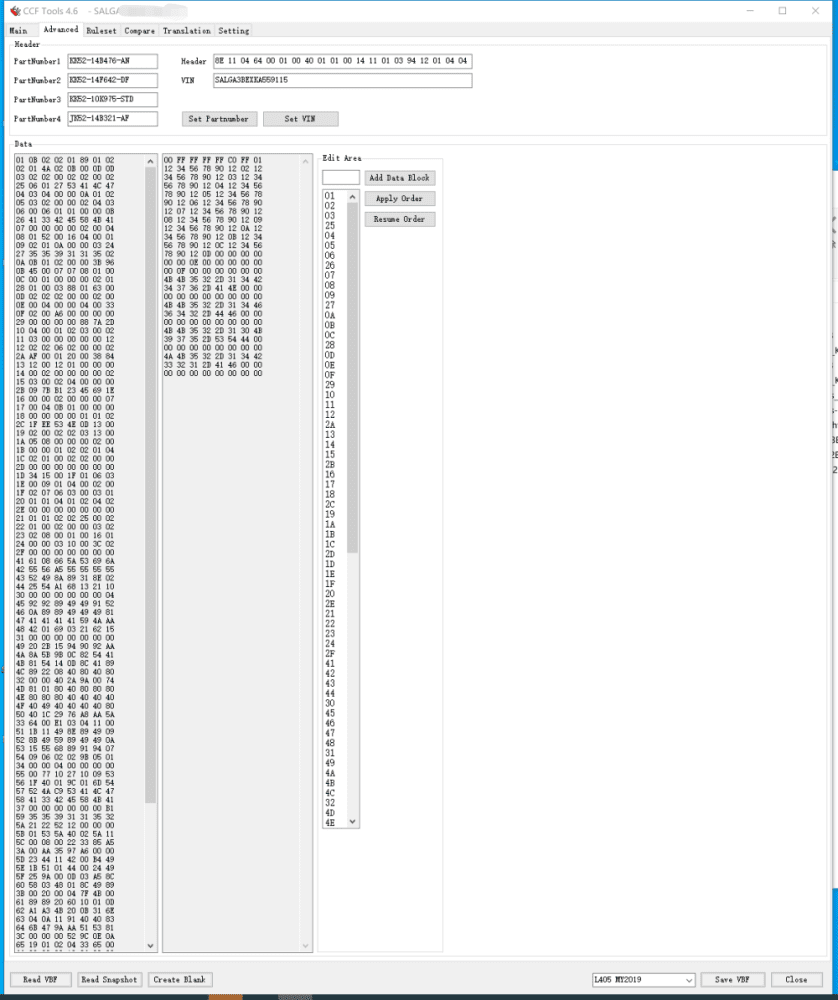

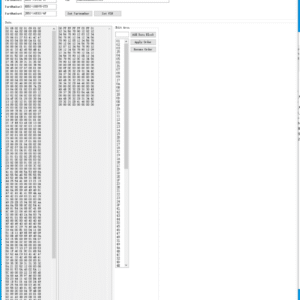

• read header

n

• compare VBF files

n

• Translation, Efg Common Code

n

n

n

CCF Tools 4.6 Support JLR List

n

n

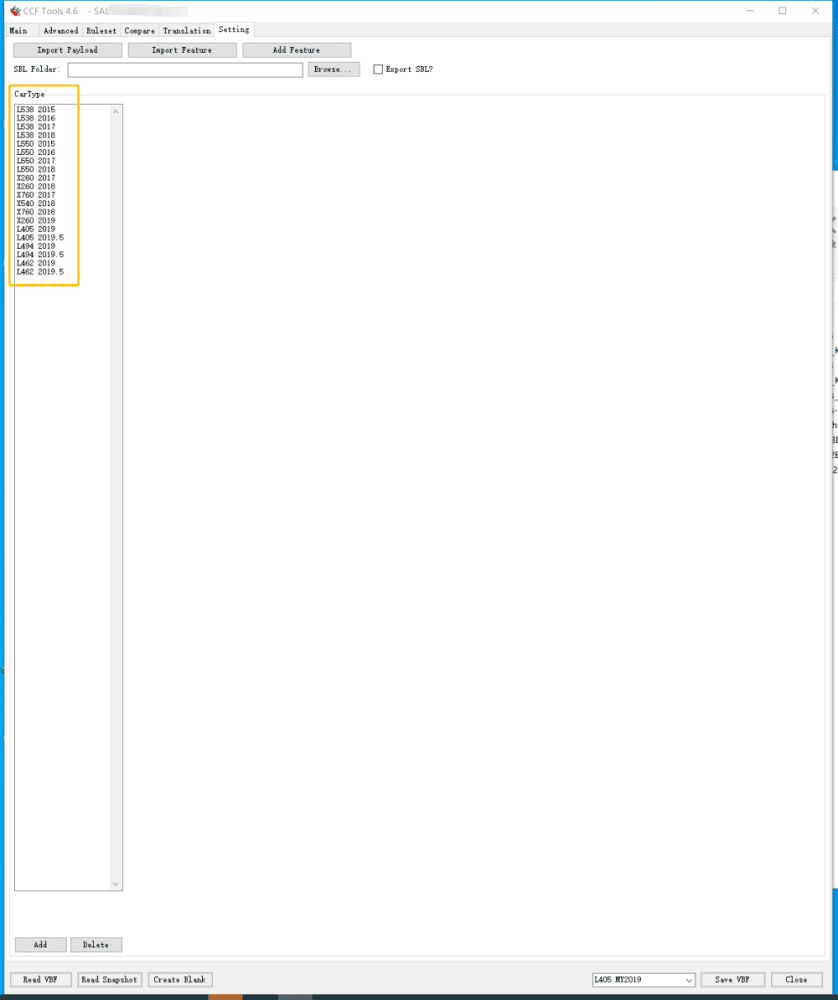

• Support MY 2015 – 2019.5 Car models. L538, L550, X260, X760,
  X540, L405, L494, L462

n

n… Also you can get more ideas about Pathfinder and SDD
n

Pathfinder
Offline Unlock without TOPIX
Land Rover Account Input

nPackage Includes 1 Pathfinder system unlock
V371 or V372 or V374 to work with offline Pathfinder on 2022 models without
TOPIX account login. In case you don’t have the Pathfinder installed, we can
provide the Pathfinder V372 and SDD V162 System image files after the order
payment. The package from this link does NOT come with installation service
remote
support. We will remotely unlock the system V371 or V372 or V374 to
work with offline Pathfinder on 2022 models without a TOPIX account login.
Special
Note: This item is NOT returnable under any
circumstance. No refunds are available under any circumstance.
The Pathfinder software 2022 It is the only unit
that will be compatible with the Pathfinder Software and all JLR vehicles
with the new vehicle architectures found in 2017 and newer vehicles (from the
Range Rover/Range Rover Sport L405/L494). In addition to the 2017 and newer
vehicles, the DoIP VCI will also be capable of interfacing with 2014 through
2019 Multi-CAN architecture vehicles (see application list below). PATHFINDER
supports the following vehicles. Land Rover: Range Rover L405 (17MY) Range
Rover Sport L494 (17MY) New Discovery L462 (17MY) Jaguar: F-TYPE X152 (18MY)
F-PACE X761 (18MY) XE X760 (18MY) XF X260 (18MY) The SDD
software All 2014-2018 with no DOIP and earlier (2006 to 2014)
land rover and Jaguar will still use the SDD JLR software.
14-16MY Vehicles with DOIP VCI support
n

n
• XE (X760)

n

• F-Pace (X761)

n

• F-Type (X152)

n

• XF (X260)

n

• XJ (X351) – 16MY only

n

• Evoque (L538)

n

• Discovery Sport (L550)

n

• Range Rover (L405)

n

• Range Rover Sport (L494)

n

nPre-14MY and vehicles not detailed above will continue to use the current
diagnostic system and VCIs. For
Land Rovers from 1998-2009, fully compatible with the T4
Product Platform.  The T4 Mobile Plus System software can work
with both Windows XP and Windows
10. Frequently Asked Questions on JLR
DOIP How does the JLR VCI get updated
for future Software Updates? Periodically JLR will release
updates to its products’ drivers and software. These updates are necessary to
either release further device functionality or resolve field issues. The
updating of the drivers and software is handled by the diagnostic test
application which will install the updates on request. If problems are
experienced during device use, always make sure that the latest device
software and drivers have been installed. How to Install the
Diagnostics over Internet Protocol (DoIP) Vehicle Communication Interface
(VCI) unit? Before Installation:
n

n
• PATHFINDER requires a DoIP VCI unit to communicate with the
  2017 model year Range Rover L405, Range Rover Sport L494, and New Discovery
  L462.

n

• The DoIP VCI must be the only VCI connected to the JLR
  Approved Diagnostic Equipment when using PATHFINDER. Future PATHFINDER
  communications will appear soon in the ‘Activity Stream’ section on TOPIX.
  Every retailer MUST have the DoIP VCI available in their workshop. The DoIP
  VCI is the only JLR approved VCI unit that can communicate with the 2017
  model year vehicles identified earlier.

n

• Please be aware that the following instructions are only
  applicable for the first use of the VCI. Once the initial installation and
  settings have been completed, the DoIP VCI is plug-and-play with the
  PATHFINDER software.

n

n

n
1. Insert the DoIP VCI USB cable into the DoIP VCI device and
   the JLR Approved Diagnostic Equipment. Note: The ‘USB Input Device’ pop-up
   will appear, select ‘X’ and close the pop-up.

n

2. Select the ‘Windows’ key.

n

3. Select ‘All Programs.

n

4. Select ‘Bosch’.

n

5. Select ‘VCI Software (JLR)’.

n

6. Select ‘VCI Manager (JLR)’.

n

7. Select the VCI icon displayed on the screen.

n

8. Select ‘Connect to VCI’

n

9. Select ‘VCI Update’.

n

10. Select ‘Start Update’.

n

11. The ‘VCI Manager Information’ pop-up will appear, select ‘OK’
    to continue. Note: Do not disconnect the DoIP VCI from the JLR Approved
    Diagnostic Equipment during the update process. Note: The DoIP VCI update
    process will take approximately 12 minutes to complete.

n

12. The DoIP VCI will now automatically restart. Wait for the
    DoIP VCI to give an audible beep. Select ‘OK’ to continue.

n

13. Select ‘X’ and close the ‘VCI Manager’. The DoIP VCI is ready
    for use Setting Preferences in PATHFINDER

n

nHow to Set the Preferences in PATHFINDER?
n

n
1. Select the PATHFINDER icon on the ‘JLR Application
   Launcher.

n

2. Select ‘Other User’ and enter your ‘User Identification’ and
   Password details.

n

3. Select ‘Independent Operator’ or ‘Authorised
   Repairer’.

n

4. Select ‘OK’ and log in.

n

5. Read the content of the ‘Warning’ pop-up and select
   ‘OK’.

n

6. Select the three-bar icon in the top right of the screen.
   Select the ‘Settings’ icon.

n

7. Select the ‘Communication Interface’ tab. Select
   ‘D-PDU’.

n

8. The ‘Windows Security Alert – Windows Firewall’ pop-up is
   displayed. Note: Do not select ‘Cancel’ when the ‘Windows Security Alert’
   pop-up is displayed.

n

9. In the ‘Windows Security Alert – Windows Firewall’ pop-up,
   select the checkboxes for ‘Private Networks’ and ‘Public Networks’, then
   select ‘Allow Access’.

n

10. The preferences have now been set in PATHFINDER. Note: Once
    the initial installation and settings have been completed, the DoIP VCI is
    plug-and-play with the PATHFINDER software.
